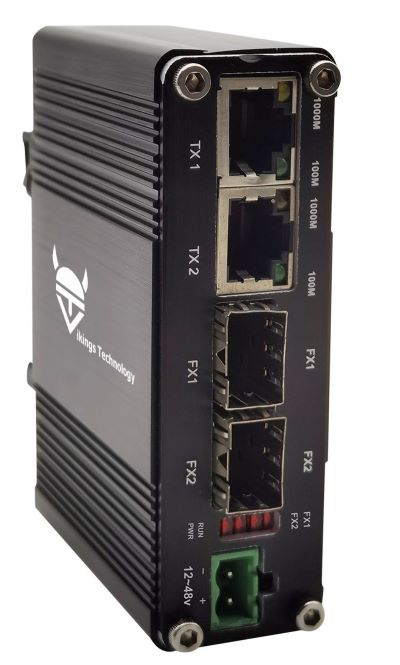

SUG220-D5

Unmanaged Industrial Switch with 90W PoE SUG220P90-D5

€0,00

  • 2 * 10/100/1000Base-TX (RJ45) ports
  • 2 * 100/1000Base-X (SFP) ports
  • PoE++ up to 90W per port output
  • 48-56VDC Power Input

Out of stock

Category:
Ports
RJ45 ports and speed 2 * 10/100/1000Base-TX
Fiber ports and speed 2 * 100/1000Base-X SFP
Ethernet
Processing type Store and Forward
Max Packet Length 9KB
Packet Buffer 1Mb
MAC Address Table 2K
PoE IEEE802.3af/at/bt Max output 90W each port
Standards IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab
Environmental
Operating Temperature -40oC ~ +75oC
Storage Temperature -40oC ~ +85oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 480.000h
Electrical and Physical
Power Input 48-56VDC
Max Power consumption 185W
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 95 * 70 * 30mm
Weight 300g
Mounting Din-rail / Wallmount
Certification
Standards
Surge protection for power ports: 6KV (EN 61000-4-5)
Surge protection for Ethernet ports: 6KV (EN 61000-4-5)
Vibration: IEC 60068-2-6:2007
Shock: IEC 60068-2-27:2008
Free fall: IEC 60068-2-32:1975
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
SUG220-D5 series Unmanaged Switches datasheet (0.3MB)

SUG220P-D5 Quick Installation Guide (0.1MB)


Description

The SUG220P90-D5 Industrial grade Unmanaged Ethernet Switch is designed to switch and transmit 10/100/1000Mbps Ethernet over optical fiber through user selectable SFP module options. The SFP port auto detects 100Base-FX and 1000Base-X  SFP modules, which makes this unit universal for 100Mbps and 1Gbps fiber networks. The PoE port provides PoE as Power Sourcing Equipment (PSE) up to 90W per each port. Housed in rugged metal Din-rail or wall-mountable enclosure, no fan design with extreme temperatures operation, makes those switches a perfect choice for critical environments, such as security, transportation, airports, industrial networking or even military applications.





Additional information

# of SFP ports

2
PoE

90W
Port Speed

100Mbps, 1Gbps
Management

Unmanaged
Operating Temperature

From -40C to +75C
# of RJ45 ports

2
