| Ports | |
| RJ45 ports and speed | 2 * 10/100/1000Base-TX |
| Ethernet | |
| Processing type | Forward |
| PoE | IEEE802.3af/at, Max output 60W |
| Standards | IEEE802.3 IEEE802.3u IEEE802.3ab |
| Environmental | |
| Operating Temperature | -40oC ~ +75oC |
| Storage Temperature | -40oC ~ +85oC |
| Relative Humidity | 0 ~ 90% non-condensing |
| MTBF | >200.000h |
| Electrical and Physical | |
| Power Input | 48-57VDC |
| Max Power consumption | 65W |
| Cooling | Natural cooling, no fan design |
| Dimensions (H * D * W) | 95 * 70 * 30mm |
| Weight | 250g |
| Mounting | Din-rail / Wallmount |
| Certification | |
| Standards | CE 2014/30/EU EMC EN 55032:2015 EN 55035:2017 EN 61000-3-2:2014 EN 61000-3-3:2013 CE 2014/35/EU LVD EN62368-1:2014+A11:2017 FCC Part 15, Subpart B:2016 ANSI C63.4:2014 RoHS 2011/65/EU and 2015/863/EU |
Product Details

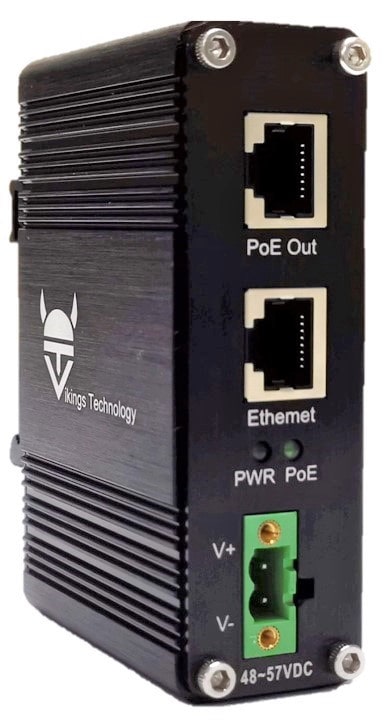

Industrial Gigabit 60W PoE Injector INGP60-D5
€0,00
- PoE++ up to 60W output
- 48-57VDC Power Input
- Operating temperature from -40C to +75C
Out of stock
INGP-D5 series PoE Injectors datasheet (0.3MB)
INGP-D5 series Quick Installation Guide (0.1MB)
Description
The INGP60-D5 Industrial grade Gigabit PoE Injectors are designed to inject and supply up to 60W PoE to power up your camera or any other PoE PD device. IEEE802.3af/at compliant (up to 60W) PoE output. All models supports 10/100/1000Mbps Ethernet. Housed in rugged metal Din-rail or wall-mountable enclosure, no fan design with extreme temperatures operation, makes those PoE Injectors a perfect choice for critical environments, such as security, transportation, airports, industrial networking or even military applications.
Additional information
| PoE | 30W |
|---|---|
| Port Speed | 100Mbps, 1Gbps |
| Operating Temperature | From -40C to +75C |
