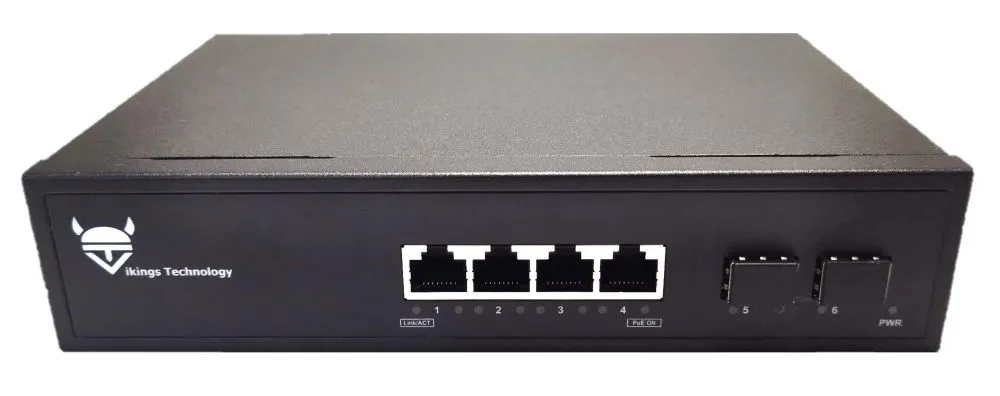

Unmanaged Ethernet Switch with PoE SUG420CP-S8

Unmanaged Ethernet Switch with PoE SUG420CP-S8

  • 4 * 10/100/1000Base-TX (RJ45) ports
  • 2 * 1000Base-X (SFP) ports
  • PoE+ up to 30W per port
  • Inbuilt PSU, 100-240VAC input

This product is currently out of stock and unavailable.

SKU: N/A Category:
Ports
RJ45 ports and speed 4 * 10/100/1000Base-TX
Fiber ports and speed 2 * 1000Base-X SFP
DIP switch n/a
Ethernet
Processing type Store and Forward
Switching Bandwidth 12Gbps
Packet Forwarding 8.92Mpps
Packet Buffer 1Mb
MAC Address Table 2K
PoE Ports 1-4: IEEE 802.3af/at, max output 30W per port (68W Total)
Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Environmental
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 410.000h
Electrical and Physical
Power Input 100~240VAC
Max Power consumption 78W (10W without PoE)
Case Metal case
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 45 * 140 * 202mm
Weight ~1kg
Mounting Standalone / Wallmount
Certifications
Standards
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
SUG420CP-S8 series Unmanaged Switches datasheet (0.3MB)

Unmanaged Ethernet Switch with PoE Quick Installation Guide (0.2MB)


Description

The SUG420CP-S8 Ethernet Switch comes with 4 * 10/100/1000Mbps RJ45 PoE and 2 * 1000Base-X SFP ports. All 4 RJ45 ports provides PoE as Power Sourcing Equipment (PSE) up to 30W per port, with total 68W PoE budget. High, 12Gbps Switching bandwidth ensures seamless switch performance on it’s all 6 ports at maximum speed without any delays. Housed in compact metal enclosure, with inbuilt power supply, no fan design and PoE ports makes those Ethernet switches a perfect choice for small video surveillance and other installations.

Additional information

# of RJ45 ports

4
# of SFP ports

2
PoE

30W
Port Speed

1Gbps
Management

Unmanaged
Operating Temperature

From 0C to +50C
