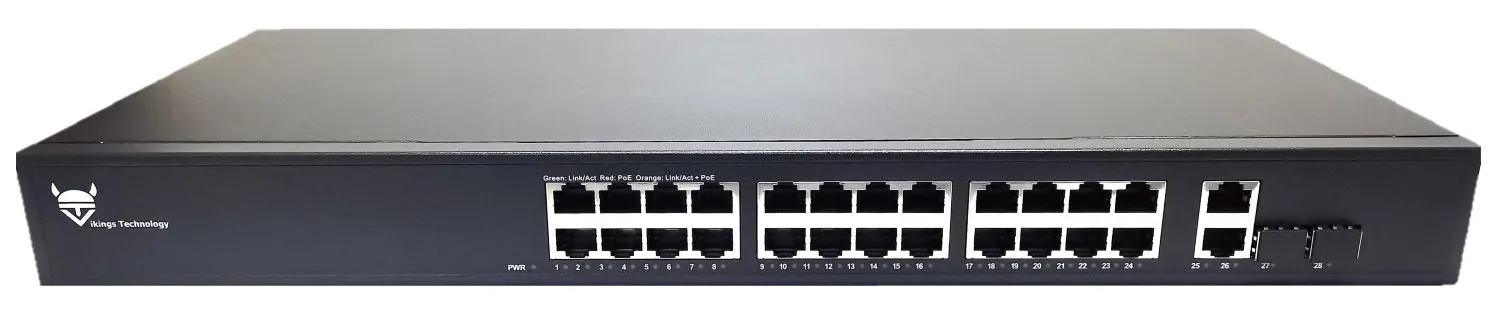

Unmanaged Ethernet Switch with PoE SUG2620CP-1U

Unmanaged Ethernet Switch with PoE SUG2620CP-1U

  • 24 * 10/100/1000Base-TX (RJ45) PoE ports
  • 2 * 10/100/1000Base-TX (RJ45) uplink ports
  • 2 * 1000Base-X (SFP) ports
  • Inbuilt PSU, 100-240VAC input

This product is currently out of stock and unavailable.

SKU: N/A Category:
Ports
RJ45 ports and speed 26 * 10/100/1000Base-TX
Fiber ports and speed 2 * 1000Base-X SFP
DIP switch n/a
Ethernet
Processing type Store and Forward
Switching Bandwidth 56Gbps
Packet Forwarding 41.66Mpps
Packet Buffer 4.1Mb
MAC Address Table 8K
PoE Ports 1-24: IEEE 802.3af/at, max output 30W per port (276W Total)
Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Environmental
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 470.000h
Electrical and Physical
Power Input 100~240VAC
Max Power consumption 300W (24W without PoE)
Case Metal case
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 45 * 192 * 440mm
Weight ~3kg
Mounting 19“ Rack mountable, 1U height
Certifications
Standards
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102

SUG2620CP-1U series Unmanaged Switches datasheet (0.3MB)

Unmanaged Ethernet Switch with PoE Quick Installation Guide (0.2MB)


Description

The SUG2620CP-1U Ethernet Switch comes with 24 * 10/100/1000Mbps RJ45 PoE and 2*10/100/1000Mbps RJ45 uplink and 2 * 1000Base-X SFP ports. 1-24 ports provides PoE as Power Sourcing Equipment (PSE) up to 30W per port, with total 276W PoE budget. High, 56Gbps Switching bandwidth ensures seamless switch performance on it’s all 28 ports at maximum speed without any delays. Housed in metal case, with inbuilt power supply, no fan design and all gigabit ports makes those Ethernet switches a perfect choice for medium scale video surveillance and other installations.

Additional information

# of RJ45 ports

24-26
# of SFP ports

2
PoE

30W
Port Speed

1Gbps
Management

Unmanaged
Operating Temperature

From 0C to +50C
