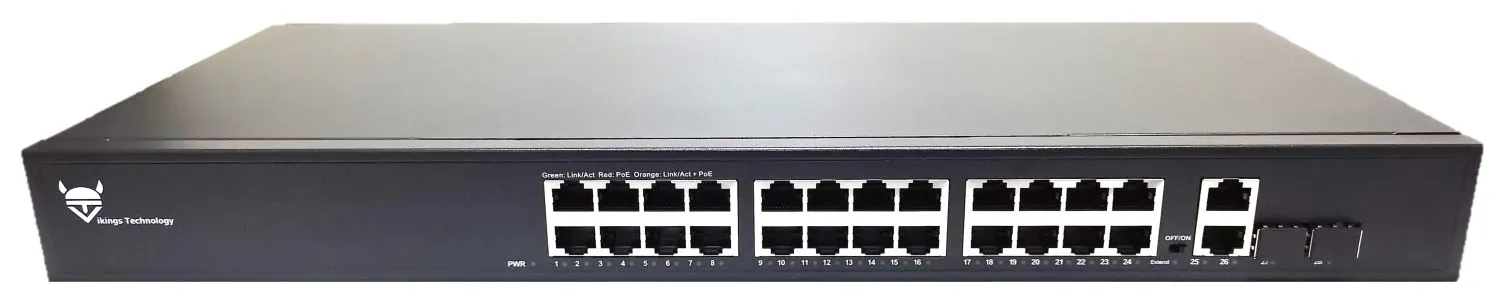

Unmanaged Ethernet Switch with PoE SUF2620CP-1U

Unmanaged Ethernet Switch with PoE SUF2620CP-1U

  • 24 * 10/100Base-TX (RJ45) PoE ports
  • 2 * 10/100/1000Base-TX (RJ45) uplink ports
  • 2 * 1000Base-X (SFP) ports
  • Inbuilt PSU, 100-240VAC input

This product is currently out of stock and unavailable.

SKU: N/A Category:
Ports
RJ45 ports and speed 24 * 10/100Base-TX
2 * 10/100/1000Base-TX
Fiber ports and speed 2 * 1000Base-X SFP
DIP switch 250m Extended Ethernet (ports 1-24)
Ethernet
Processing type Store and Forward
Switching Bandwidth 12.8Gbps
Packet Forwarding 9.52Mpps
Packet Buffer 1Mb
MAC Address Table 2K
PoE Ports 1-24: IEEE 802.3af/at, max output 30W per port (280W Total)
Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Environmental
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 470.000h
Electrical and Physical
Power Input 100~240VAC
Max Power consumption 300W (20W without PoE)
Case Metal case
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 45 * 192 * 440mm
Weight ~3kg
Mounting 19“ Rack mountable, 1U height
Certifications
Standards
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102

SUF2620CP-1U series Unmanaged Switches datasheet (0.3MB)

Unmanaged Ethernet Switch with PoE Quick Installation Guide (0.2MB)


Description

The SUF2620CP-1U Ethernet Switch comes with 24 * 10/100Mbps RJ45 PoE and 2*10/100/1000Mbps RJ45 uplink and 2 * 1000Base-X SFP ports. 1-24 ports provides PoE as Power Sourcing Equipment (PSE) up to 30W per port, with total 280W PoE budget. Inbuilt PoE & Ethernet extender function allows signals to be transmitted & received up to 250meters. Housed in metal case, with inbuilt power supply, no fan design and PoE ports makes those Ethernet switches a perfect choice for video surveillance and other installations.

Additional information

# of RJ45 ports

24-26
# of SFP ports

2
PoE

30W
Port Speed

100Mbps, 1Gbps
Management

Unmanaged
Operating Temperature

From 0C to +50C
