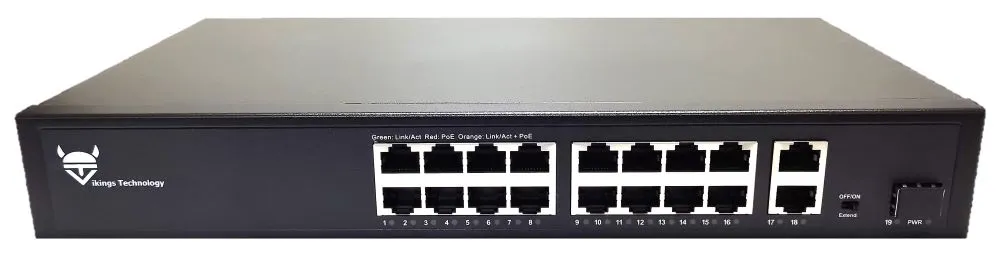

Unmanaged Ethernet Switch with PoE SUG1810CP-S9

Unmanaged Ethernet Switch with PoE SUF1810CP-S9

  • 16 * 10/100Base-TX (RJ45) PoE ports
  • 2 * 10/100/1000Base-TX (RJ45) uplink ports
  • 1 * 1000Base-X (SFP) ports
  • Inbuilt PSU, 100-240VAC input

This product is currently out of stock and unavailable.

SKU: N/A Category:
Ports
RJ45 ports and speed 16 * 10/100Base-TX
2 * 10/100/1000Base-TX
Fiber ports and speed 1 * 1000Base-X SFP
DIP switch 250m Extended Ethernet (ports 1-16)
Ethernet
Processing type Store and Forward
Switching Bandwidth 9.2Gbps
Packet Forwarding 6.84Mpps
Packet Buffer 1Mb
MAC Address Table 2K
PoE Ports 1-16: IEEE 802.3af/at, max output 30W per port (284W Total)
Standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Environmental
Operating Temperature 0oC ~ +50oC
Storage Temperature -20oC ~ +70oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 410.000h
Electrical and Physical
Power Input 100~240VAC
Max Power consumption 300W (16W without PoE)
Case Metal case
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 45 * 183 * 310mm
Weight ~2.2kg
Mounting Standalone
Certifications
Standards
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
SUF1810CP-S9 series Unmanaged Switches datasheet (0.3MB)

Unmanaged Ethernet Switch with PoE Quick Installation Guide (0.2MB)


Description

The SUF1810CP-S9 Ethernet Switch comes with 16 * 10/100Mbps RJ45 PoE and 2*10/100/1000Mbps RJ45 uplink and 1 * 1000Base-X SFP ports. 1-16 ports provides PoE as Power Sourcing Equipment (PSE) up to 30W per port, with total 284W PoE budget. Inbuilt PoE & Ethernet extender function allows signals to be transmitted & received up to 250meters. Housed in compact metal enclosure, with inbuilt power supply, no fan design and PoE ports makes those Ethernet switches a perfect choice for small video surveillance and other installations.

Additional information

# of RJ45 ports

16-18
# of SFP ports

1
PoE

30W
Port Speed

100Mbps, 1Gbps
Management

Unmanaged
Operating Temperature

From 0C to +50C
