MCG-S1

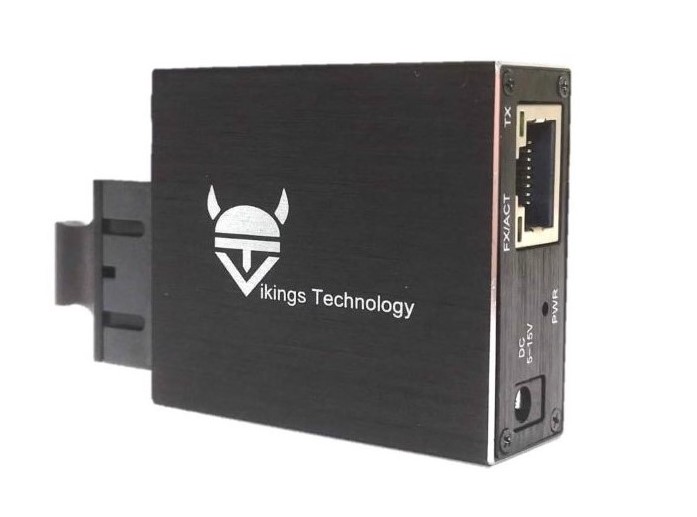

Ultra Small Ethernet Media Converter MCG-S1

€0,00

  • 1*10/100/1000Base-TX to 1*100/1000Base-FX
  • Ultra Small design, only 62*44*18mm
  • Operating temperature from -10C to +60C
  • Wide selection of inbuilt fiber modules MM/SM, SC/ST

Out of stock

Category:
Ports
RJ45 ports and speed 1 * 10/100/1000Base-TX
Fiber ports and speed 1 * 100/1000Base-FX fiber module inbuilt
Fiber Type, Connectors, Max distance Singlemode or Multimode, SC or ST, 1/20km - check Ordering Information in datasheet
Ethernet
Processing type Store and Forward
Max Packet Length 9KB
MAC Address Table 2K
PoE Not supported
Standards IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3z
Environmental
Operating Temperature -10oC ~ +60oC
Storage Temperature -40oC ~ +75oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 410.000h
Electrical and Physical
Power Input 5-15VDC
Max Power consumption 3W
Dimensions (H * D * W) 62 * 44 * 18mm (51 * 44 * 18mm - metal box only, without fiber connectors)
Weight 50g (~150g including PA)
Mounting Desktop / Wallmount with a help of Velcro tape
Certification
Standards
Vibration: IEC 60068-2-6:2007
Shock: IEC 60068-2-27:2008
Free fall: IEC 60068-2-32:1975
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
Wall-pluggable Power Adaptor (5VDC) is included
MCG-S1 series Media converters datasheet (0.3MB)

Ultra Small Media Converter Quick Installation Guide (0.2MB)


Description

This Ultra Small Ethernet Media Converter is designed to transmit and receive Ethernet signal over optical fiber. Fiber port auto detects network speed, which makes this unit universal for 100Mbps and 1Gbps fiber networks. Versions for Singlemode and Multimode fiber type, single and dual fiber cores, SC and ST fiber connectors available. Housed in Ultra Small robust metal enclosure, no fan design with up to +60C temperature operation, makes those media converters a perfect choice for your applications, where installation spaces are limited and higher environment temperatures expected.





Additional information

PoE

None
Port Speed

100Mbps, 1Gbps
Operating Temperature

From -10C to +60C
