Industrial Gigabit PoE++ Splitter

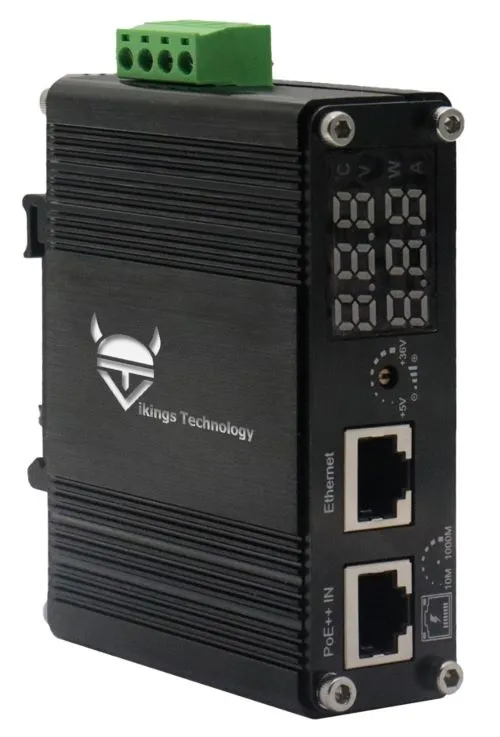

Industrial Gigabit PoE++ Splitter SPGP90-D5

€0,00

  • Supports IEEE802.3af/at/bt PoE PSE
  • 2 x 5-36VDC outputs with rotary voltage adjustment
  • Operating temperature from -40C to +75C

Out of stock

Category:
Ports
RJ45 ports and speed 1 * 10/100/1000Base-TX (Ethernet with PoE, input)
1 * 10/100/1000Base-TX (Ethernet only, output)
Ethernet
Processing type Forward
PoE IEEE802.3af/at/bt (as input only)
Standards IEEE802.3 IEEE802.3u IEEE802.3ab
Environmental
Operating Temperature -40oC ~ +75oC
Storage Temperature -40oC ~ +85oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 480.000h
Electrical and Physical
Power Input PoE, IEEE802.3af/at/bt
Power Output 2 * 5-36VDC with rotary voltage adjustment, screw terminal block
Reference max Power Output at DC terminals* @5VDC - 50W (10A), @12VDC - 70W (5.8A)
@24VDC - 70W (2.9A), @36VDC - 70W (1.9A)
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 95 * 70 * 30mm
Weight 250g
Mounting Din-rail / Wallmount
Certification
Standards
Surge protection for Ethernet ports: 6KV (EN 61000-4-5)
Vibration: IEC 60068-2-6:2007
Shock: IEC 60068-2-27:2008
Free fall: IEC 60068-2-32:1975
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
*With IEEE802.3bt (90W) PoE PSE
SPGP90-D5 series PoE Splitters datasheet (0.3MB)

SPGP90-D5 series Quick Installation Guide (0.2MB)


Description

The SPGP90-D5 series Industrial-Grade Gigabit PoE++ Splitters are designed to separate power and Ethernet data signals from a PoE-enabled Ethernet connection. The splitters are compatible with IEEE 802.3af (15.4 W), IEEE 802.3at (30 W), and IEEE 802.3bt (up to 90W) PoE PSEs (Power Sourcing Equipment). Splitter features two universal 5-36VDC adjustable outputs, with output voltage conveniently adjusted via an external rotary control. An integrated LED display provides real-time monitoring of temperature (°C), voltage (V), current (A) and power (W). All models support 10/100/1000Mbps Ethernet connectivity. Housed in a rugged IP40-rated metal enclosure with DIN-rail or wall-mounting options, the fanless design enables reliable operation across a wide temperature range. These features make the SPGP90-D5 series an ideal solution for demanding applications such as security and surveillance, transportation, airports, industrial networking, and military environments.





Additional information

PoE

30W
Port Speed

100Mbps, 1Gbps
Operating Temperature

From -40C to +75C
