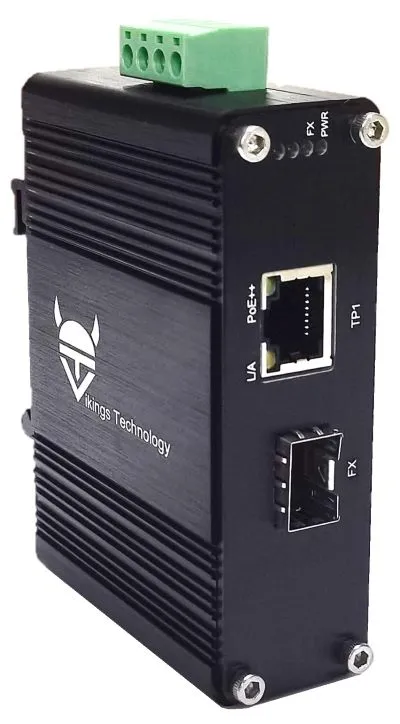

90W PoE++ media converter MCGP90-D5

Industrial Ethernet Media Converter with PoE MCFP90-D5

  • 1*10/100Base-TX to 1*100Base-X SFP
  • PoE++ up to 90W output
  • 48-57VDC Redundant Power Inputs
  • Operating temperature from -40C to +75C

This product is currently out of stock and unavailable.

SKU: N/A Category:
Ports
RJ45 ports and speed 1 * 10/100Base-TX
Fiber ports and speed 1 * 100Base-X SFP
Ethernet
Processing type Store and Forward
Max Packet Length 9KB
Packet Buffer 1Mb
MAC Address Table 2K
PoE IEEE802.3af/at/bt, max output 90W
Standards IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab
Environmental
Operating Temperature -40oC ~ +75oC
Storage Temperature -40oC ~ +85oC
Relative Humidity 0 ~ 90% non-condensing
MTBF 480.000h
Electrical and Physical
Redundant Power Inputs 48-57VDC
Max Power consumption 95W
Cooling Natural cooling, no fan design
Dimensions (H * D * W) 95 * 70 * 30mm
Weight 250g
Mounting Din-rail / Wallmount
Certification
Standards
Surge protection for power ports: 6KV (EN 61000-4-5)
Surge protection for Ethernet ports: 6KV (EN 61000-4-5)
Vibration: IEC 60068-2-6:2007
Shock: IEC 60068-2-27:2008
Free fall: IEC 60068-2-32:1975
CE 2014/30/EU EMC, EN 55032:2015/A11:2020, EN 55035:2017/A11:2020
EN 61000-3-2:2019/A2:2024, EN 61000-3-3:2013/A2:2021/AC:2022-01
EN 61000-4-2:2009, EN 61000-4-3:2020, EN 61000-4-4:2012
EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2023
CE 2014/35/EU LVD, EN IEC 62368-1:2024
FCC Part 15, Subpart B:2016, ANSI C63.4:2014
RoHS 2011/65/EU, (EU) 2015/863, (EU) 2017/2102
MCF-D5 series Media converters datasheet (0.3MB)

Industrial Ethernet Media Converter Quick Installation Guide (0.2MB)


Description

The MCFP90-D5 Industrial grade PoE++ Ethernet Media Converters are designed to transmit and receive 10/100Mbps data over optical fiber through user selectable SFP module options. This media converter not only converts Ethernet to Fiber, but also provides PoE++ as Power Sourcing Equipment (PSE) up to 90W. Housed in rugged metal Din-rail or wall-mountable enclosure, no fan design with redundant power inputs and extreme temperatures operation, makes those media converters a perfect choice for critical environments, such as transportation, airports, industrial networking or even military applications.





Additional information

PoE

30W, 60W, 90W
Port Speed

100Mbps
Operating Temperature

From -40C to +75C
