| Ports | ||||||||
| RJ45 ports and speed | 1 * 10/100Base-TX | |||||||
| Fiber ports and speed | 1 * 100Base-FX fiber module inbuilt | |||||||
| Fiber Type, Connectors, Max distance | Singlemode or Multimode, SC or ST, 1/20km - check Ordering Information in datasheet | |||||||
| Ethernet | ||||||||
| Processing type | Store and Forward | |||||||
| Switching Bandwidth | 1Gbps | |||||||
| Packet Buffer | 768Kb | |||||||
| MAC Address Table | 1K | |||||||
| PoE | IEEE802.3af/at Max output 30W | |||||||
| Standards | IEEE802.3 IEEE802.3u | |||||||
| Environmental | ||||||||
| Operating Temperature | -10oC ~ +60oC | |||||||
| Storage Temperature | -40oC ~ +85oC | |||||||
| Relative Humidity | 0 ~ 90% non-condensing | |||||||
| MTBF | 410.000h | |||||||
| Electrical and Physical | ||||||||
| Power Input | 52VDC | |||||||
| Max Power consumption | 33W | |||||||
| Dimensions (H * D * W) | 26 * 70 * 95mm | |||||||
| Weight | ~250g | |||||||
| Mounting | Standalone | |||||||
| Certification | ||||||||
| Standards |
|
Product Details

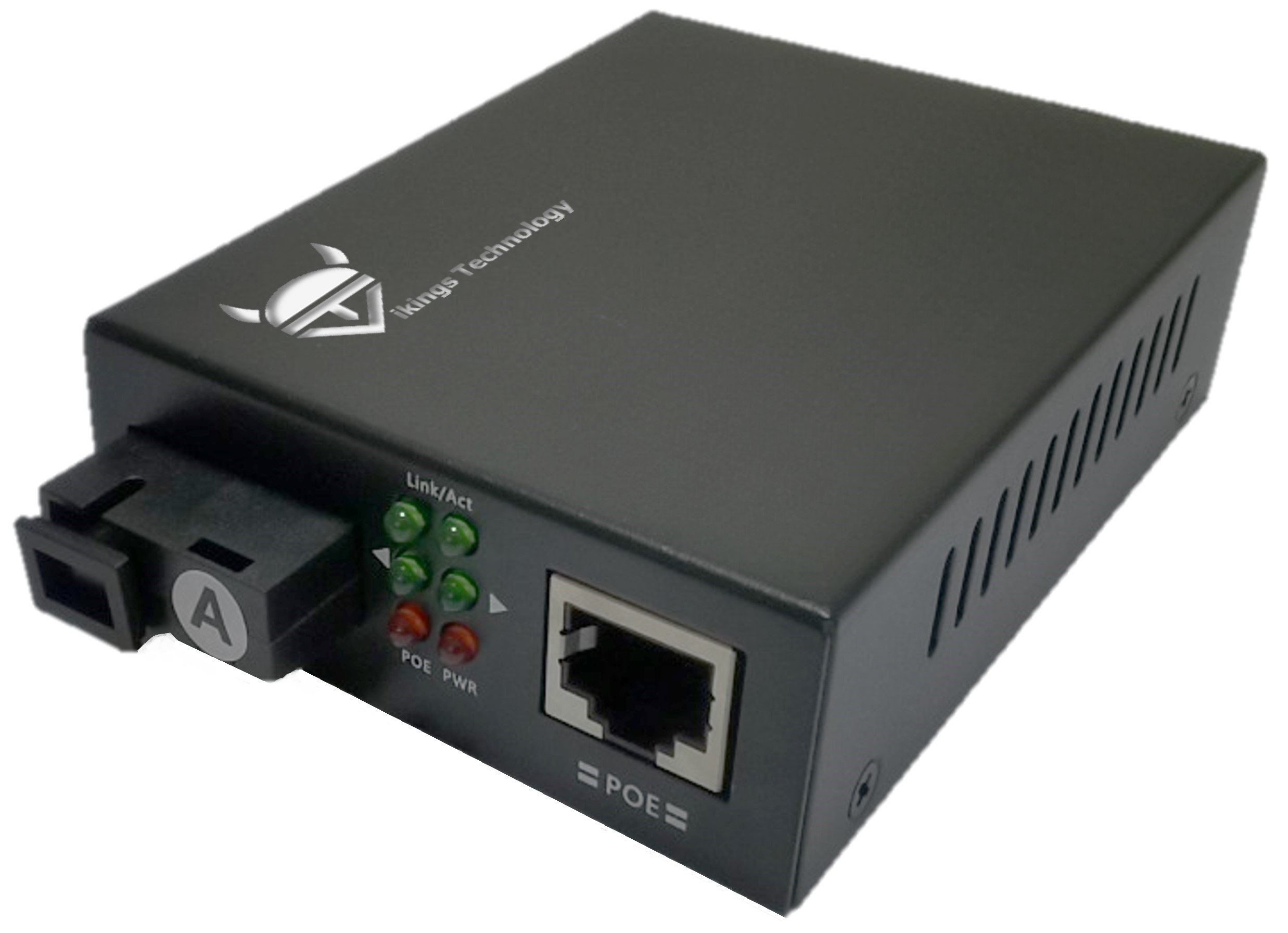

Ethernet Media Converter with PoE MCFP-S6
€0,00
- 1*10/100Base-TX to 1*100Base-FX
- PoE+ up to 30W output
- Wide selection of inbuilt fiber modules MM/SM, SC/ST
- Operating temperature from -10C to +60C
Out of stock
MCF-S6 series Media converters datasheet (0.3MB)
MCFP-S6-xyz series Quick Installation Guide (0.2MB)
Description
The MCFP-S6 series Ethernet Media Converters are designed to transmit and receive 10/100Mbps data over optical fiber. Wide selection of inbuilt fiber modules available: Singlemode or Multimode, Single or Dual fibers, with SC or ST connectors. The PoE version, meeting the IEEE802.3af/at standards, provides PoE+ as Power Sourcing Equipment (PoE/PSE) up to 30W on it’s RJ45 port. Unit housed in metal enclosure can be used as standalone module and it comes with included Power Adaptor.
Additional information
| PoE | 30W |
|---|---|
| Port Speed | 100Mbps |
| Operating Temperature | From -10C to +60C |
